Key Benefits

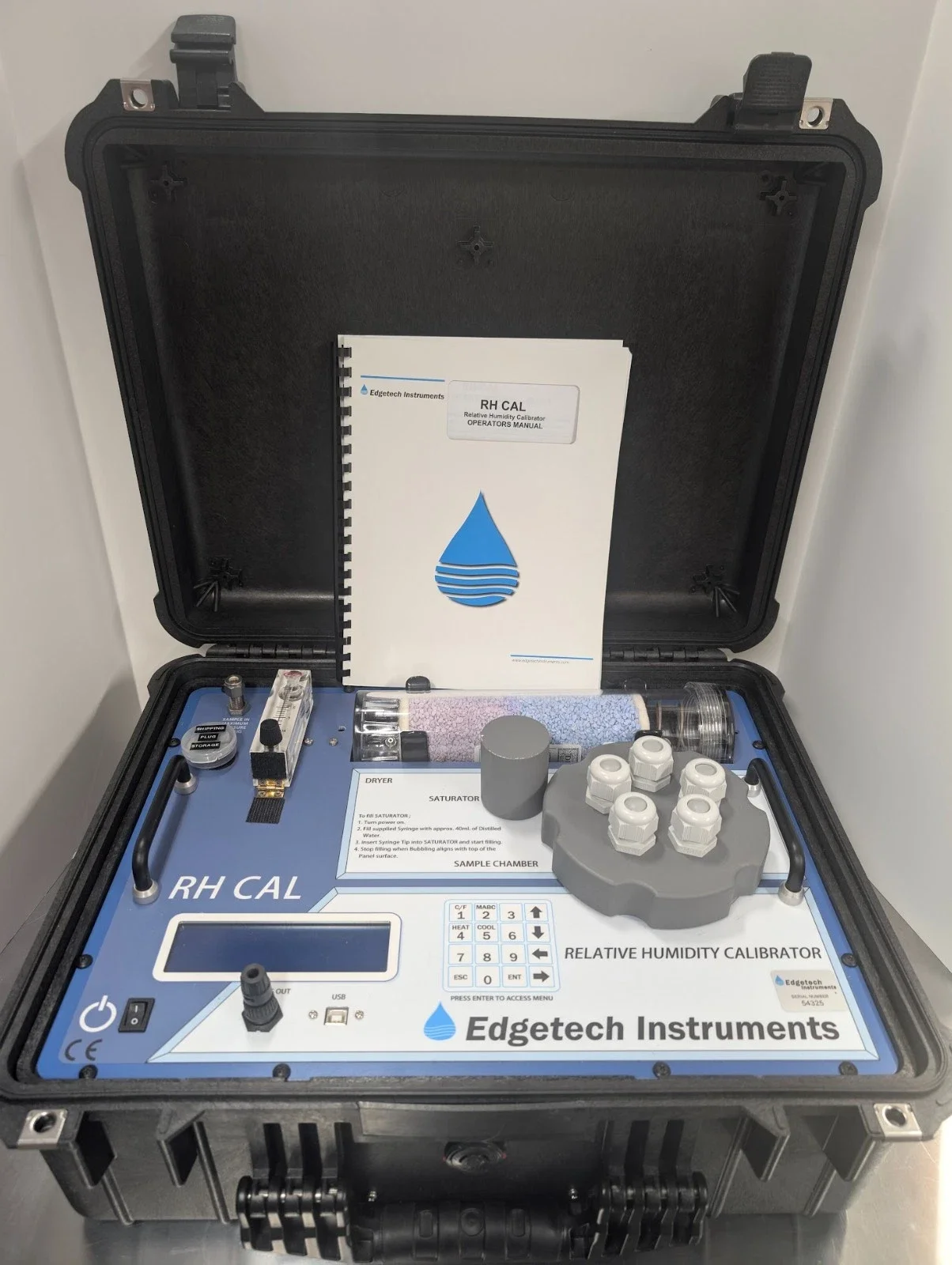

The RH CAL is a programmable humidity calibration system that is at home in the metrology lab or in the field, performing on-site, NIST traceable humidity calibrations. The system provides very high accuracy for both relative humidity and temperature. Unlike other calibration systems, the RH CAL does not need compressed air or a water connection to operate, which allows the system to be truly portable. With the RH CAL, temperature and relative humidity are controlled independently. The user is not limited to performing calibrations at the surrounding ambient temperature, which may not be appropriate for his unique calibration protocol. Using Edgetech Instruments’ chilled mirror, primary method dew/frost point measurement technique for traceability and feedback control, RH CAL is a laboratory grade, standalone, portable humidity calibration system.
Technical Specifications
ISO/IEC 17025:2017 Accredited ISO 9001:2015 Registered
Measurement Operating Ranges: Relative humidity: 5 to 95%Temperature: 10°C to 50°CDew/Frost Point: -40°C to 60°C with D2 sensor
Accuracy: Relative humidity: ±0.5%Temperature: ±0.1°CDew/Frost Point: ±0.2°C nominal
Chilled Mirror Temperature Sensors:3-wire platinum resistance thermometer (PRT),100 ohms at 0°C, nominal

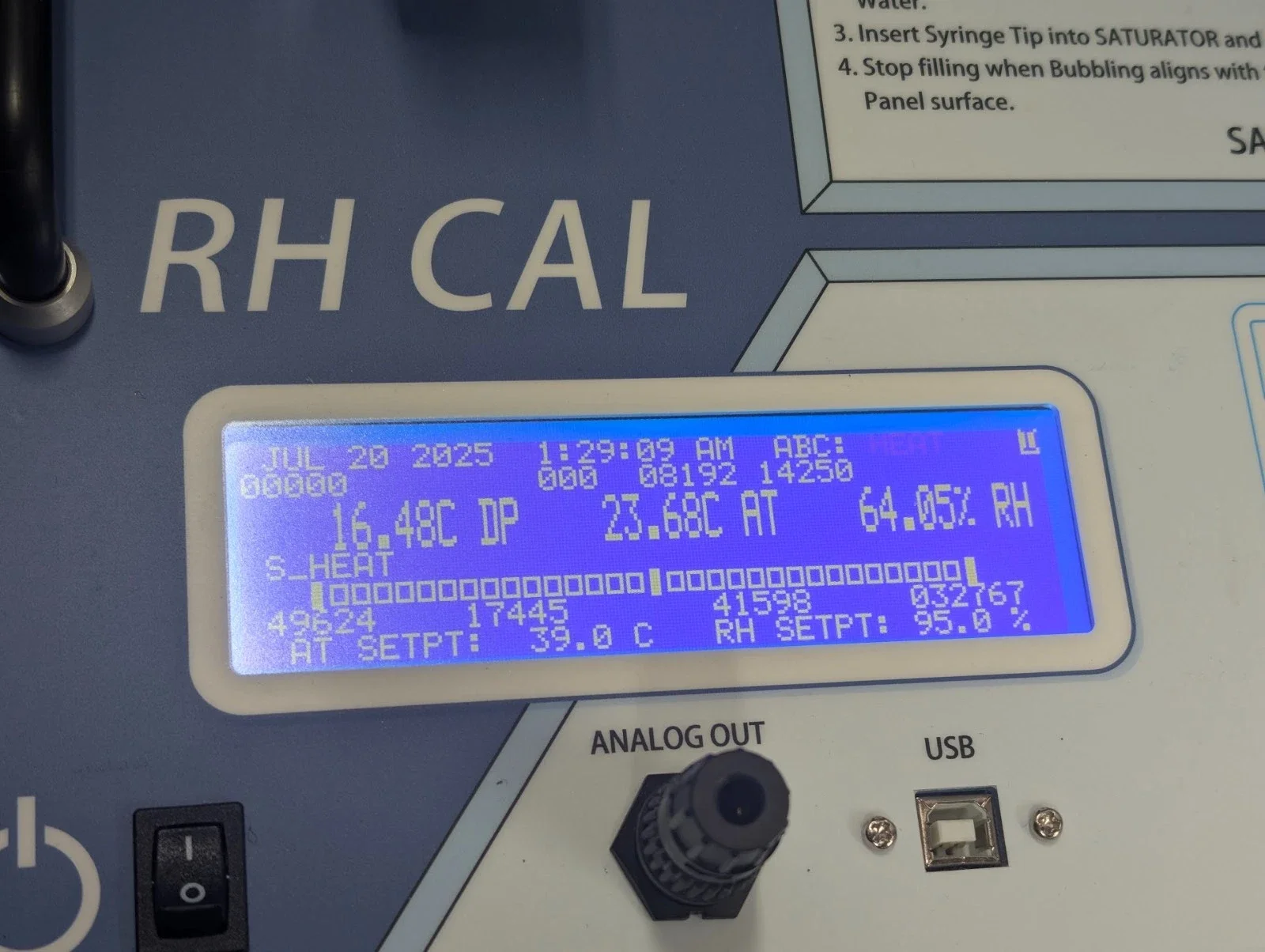

Depression:50°C (122°F), nominal with D2 sensor Slew Rate:1.0°C (1.8°F)/second max., above 0°CRepeatability:±0.05°CHysteresis:NegligiblePower Requirements:100 to 240 Vac, 50-60 Hz, 150 W maximum Sample Flow Rate:1 liter/minute (2.0 SCFH) nominal Operating Temperature: Control Unit: 0°C to +50°C (+32° to +122°F)Outputs: Analog (0 to 5 Vdc or 4 to 20 mA)RS232C serial port Display: Multi-line graphical LCD

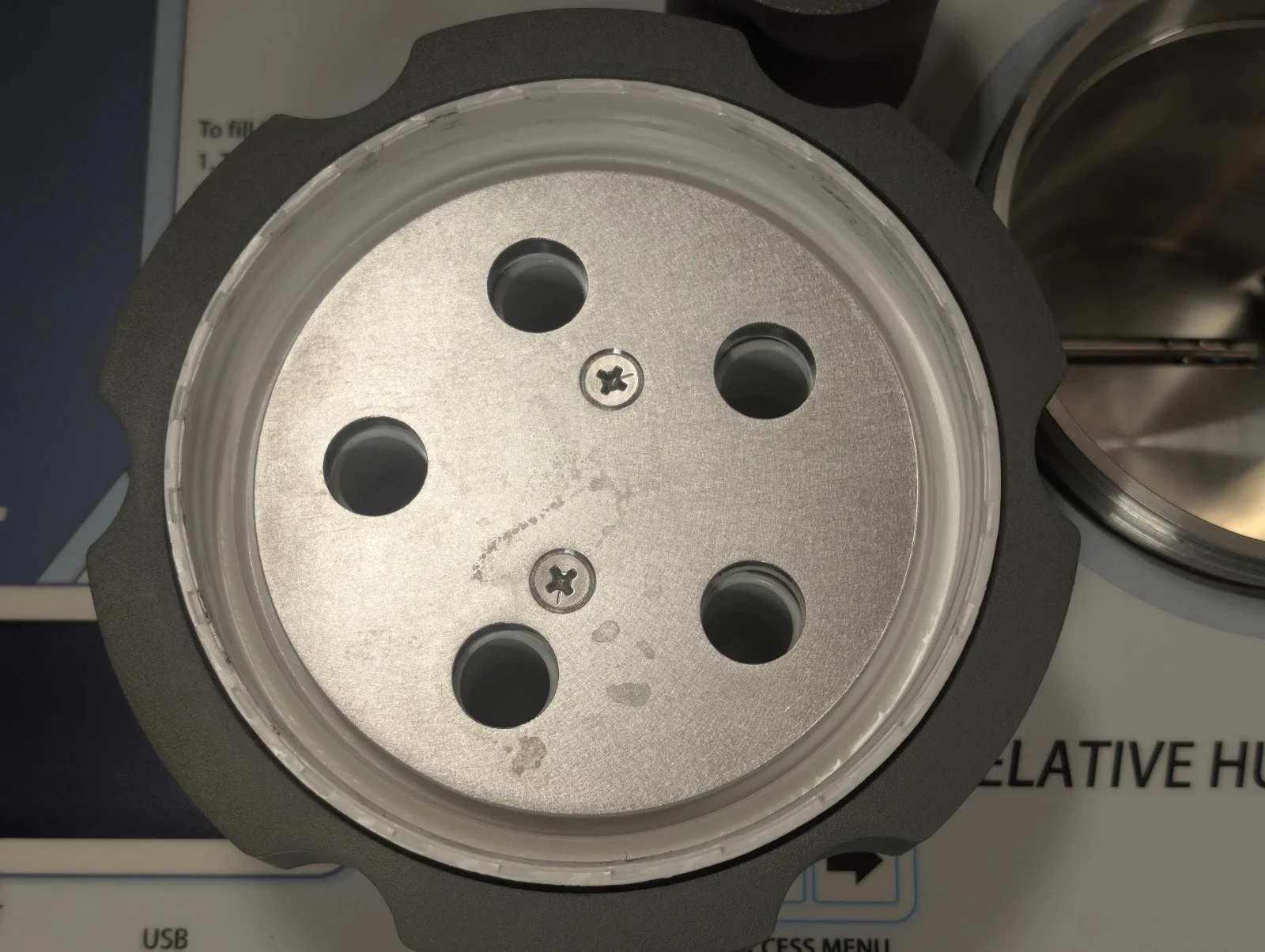

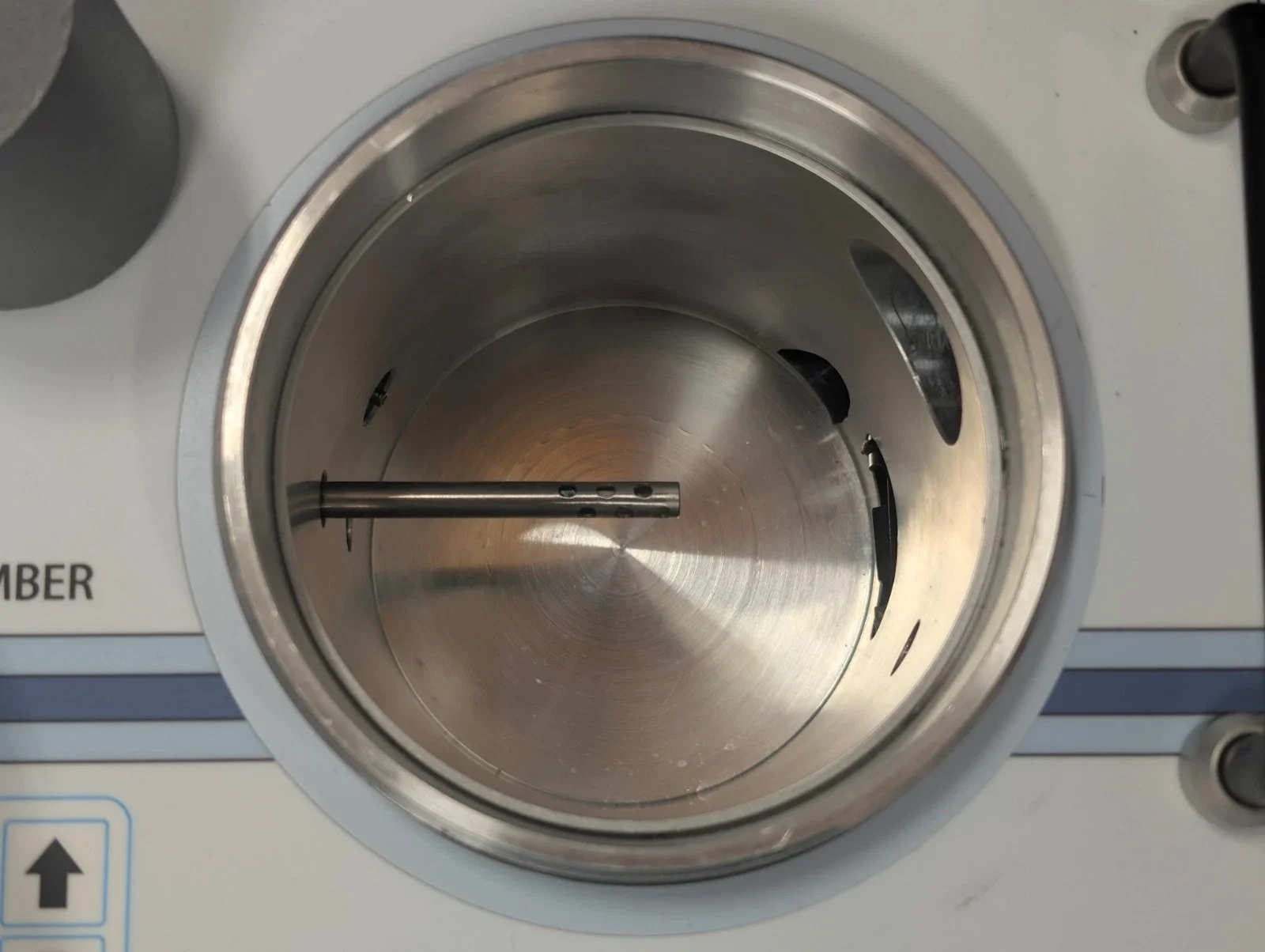

Sample Chamber Probe Port Diameters: Standard port sizes for RH probes:10, 12, 18 mm, 1/2, 3/4 in. diameter Standard port sizes for dew/frost pointprobes:1/2 to 1 1/4 in. diameter Custom port sizes availableWeight:15.4 kg (34 pounds)Dimensions:20 5/8 W x 17 3/16 D x 8 9/16 H in(52.4W x 43.7D x 21.7H cm)Sensor Materials Chromium, glass, epoxy, anodized aluminum Enclosure:

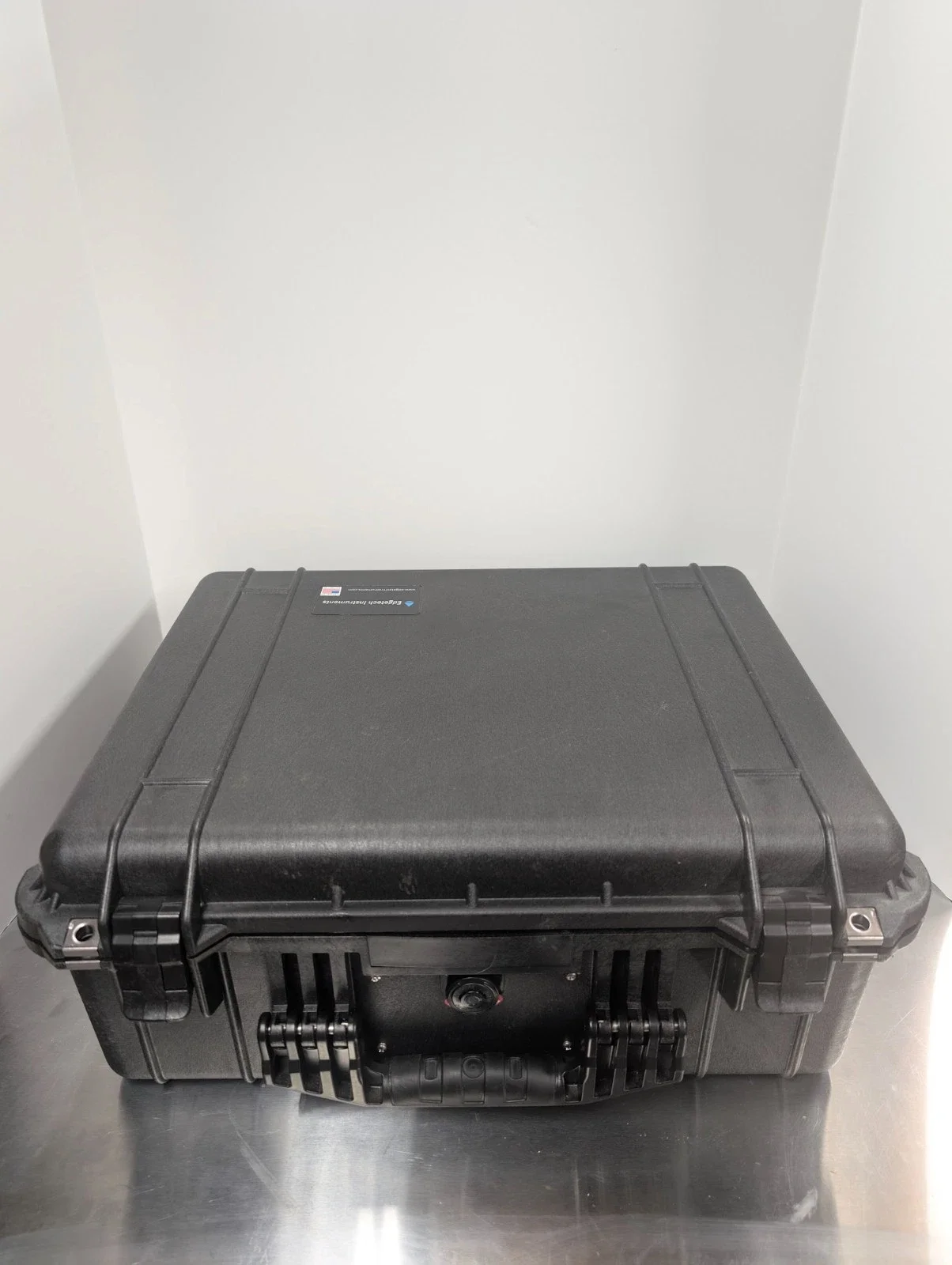

Ultra high impact structural copolymer carrying case
Applications
Checking Accuracy of Polymer and Metal Oxide Probes Environmental Chambers Metrology NIST Tracible Measurement in Metrology and Calibration Labs R&D Test & Measurement Manufacture Sitehttps://edgetechinstruments.com/product/portable-relative-humidity-calibrator/#description
